ماژول آمپلی‌فایر استریو همراه با ساب ووفر ۳۲ وات

ماژول آمپلی‌فایر استریو همراه با ساب ووفر ۳۲ وات از باس بسیار قوی برخوردار است.

برای کسب اطلاعات بیشتر اینجا کلیک کنید

 Subwoofer amplifier board finished board, the output power: left and right channel 18W +18 W, subwoofer 32W, fully compatible with LM1875. The latest version of TDA2050A (ئ۲٫۱ )+

TDA2030A + NE5532 three-channel (2.1) subwoofer amplifier board finished board, output power:Equipped with 12V decoder board power supply output and decoder board audio input (the actual wiring decode board audio input to the ground GND do not be connected to reduce interference).

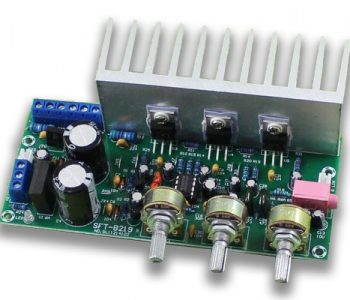

Overview of the board

The bass is strong and the treble is crisp. Using the chip as a new original: the default woofer for a TDA2050 – the output peak of 32W, two-channel unit for the two TDA2030 – the output peak of 18W +18 W. TDA2030, TDA2050, LM1875 can be completely interchangeable, if all replaced by TDA2050 or LM1875, please change the larger radiator. The amplifier chip has five pins: positive supply, negative supply, positive input, reverse input and output. Chip heat sink is connected with the negative, power work when the chip heat sink and do not short circuit, or immediately burned.The above diagram is the board wiring diagram, please carefully control wiring.

The main parameters

Around the channel: TDA2030Ax2, peak power: 18Wx2, it is recommended to use 2.5-4 inch, 4-8 Europe 10-30W full range speaker.

Bass output: TDA2050Ax1, peak power: 32W, recommended with 5-8 inch, 4-8 oh 30-50W woofer.

Working power: AC dual AC9-15V transformer, recommend the use of dual AC12V power in more than 30W transformer.

Output power: DC12V1.5A, to 12V decoder board power supply.

PCB material: FR-4 glass plate, thickness: 1.6mm.

PCB size: 135x60mm.

Radiator specifications: 100x33x37mm (length x width x height).

Potentiometer axis between the center distance: 25mm, shaft diameter: 6MM.

PCB mounting hole spacing: 128mm (length) x38mm (width).

Net weight: 230g.

Convenient decode board input port     : This board has MP3 decoder board audio input pin (specifications 3P-2.0mm) and to the decoder board power supply 12V DC power output pin (2P-2.0mm), the use of the board output 12V power supply to the decoder board power supply, the actual wiring when the decoder board audio input to the GND do not be connected to reduce interference; if the decoder board power supply must be connected to the GND. OUR has a variety of 12V powerless lossless audio (WAV + MP3) decoder board, decoders board with the power amplifier side of the power supply is the corresponding positive and negative, wiring is very convenient, hand can be plugged directly to the sound
